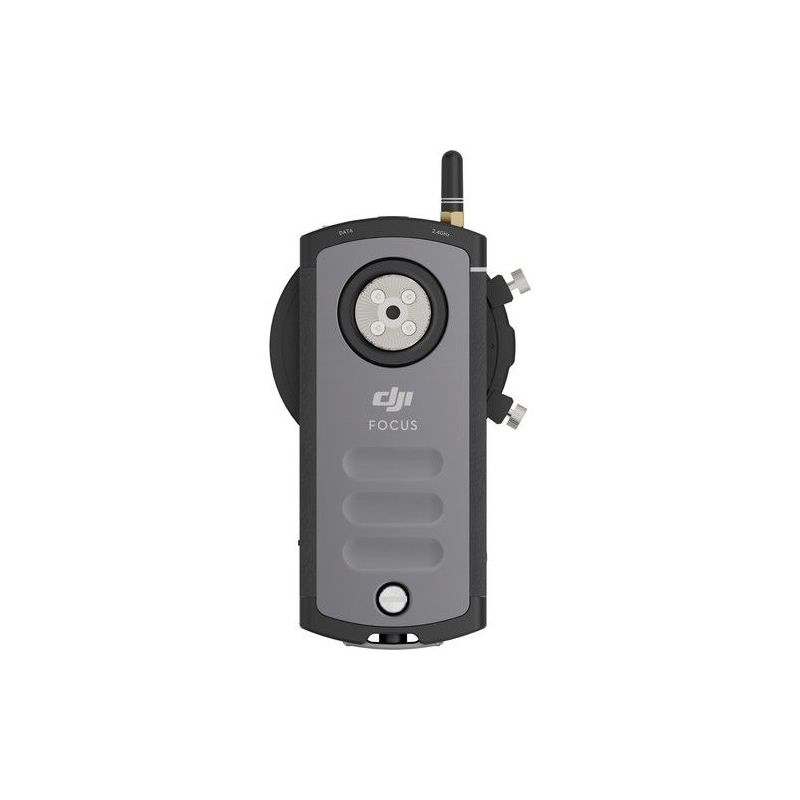

DJI Focus - Wireless Follow Focus x Ronin e Ronin-M

64S90-00021-00

Nuovo prodotto

DJI Focus - Wireless Follow Focus x Ronin e Ronin-M

Maggiori dettagli

Consegna in circa 7-10gg lav.

Con l'acquisto di questo prodotto è possibile raccogliere fino a 184 Punti fedeltà. Il totale del tuo carrello 184 Punti fedeltà può essere convertito in un buono (valido per il prossimo acquisto) di € 37.


€ 1.843

Costi di spedizione: 9€ con corriere espresso assicurato

Hai trovato il prodotto a meno?

Aggiungi alla lista dei desideri

Dettagli

  • Control Angle Accuracy:±0.002°
  • Brushless Motor and Receiver in One Unit
  • Up to 330' Line-of-Sight Range
  • Adjustable Endpoints
  • Works with Ronin and Ronin-M
  • Works with Zenmuse X5 or X5R Cameras
  • Fits Standard 15mm and 19mm Rods
  • Built-In Rosette Mount

DJI's Focus is a wireless follow focus that integrates natively with the Zenmuse Z5 series of camera/gimbals systems and can be mounted on rigs equipped with 15mm or 19mm rods - including the Ronin and Ronin-M gimbals. The Focus features a handheld remote controller (transmitter) with a focus knob to give to the feel of a traditional mechanical follow focus. The wireless system sports a range of up to 330' line-of-sight with a delay of only 14ms.

Control accuracy of ±0.002°
Self-contained drive unit combines brushless motor and receiver in a single module - simplifying installation and requiring only a single power source
Use with Inspire 1 Quadcopter carrying Zenmuse X5 or X5R camera
Adjustable endpoints - ideal for lenses, such as photo lenses, that lack "hard" stops
Programmable focus points and other parameters adjustable through controller menu
OLED display on controller for menu access and status display
Compatible with DJI's Ronin and Ronin-M gimbals
Works with third-party gimbals or rigs that have 15mm or 19mm rod support
Dual communication ports for future upgrades
Built-in rosette for greater mounting flexibility
Motor
Maximum Speed192 rpm
Maximum Torque0.26 Lb-In / 0.35 Nm
Mounting19 mm or 15 mm rods
GearModule: 0.8
Teeth: 40
Noise<25 dB (at 96 rpm)
Power ConsumptionStatic Current: 80 mA (at 12 V)
Stall Current: 2.5 A (at 12 V)
Power Requirements9 to 16 VDC
Dimensions3.5 x 2 x 1" / 90 x 50 x 26 mm
Weight6 oz / 170 g
Controller
BatteryModel: FB01-554461
Chemistry: Lithium-polymer (LiPo)
Capacity: 1700 mAh / 6.29 Wh
Voltage: 3.7 V
Dimensions6 x 3.4 x 3.5" / 153 x 86 x 90 mm
Weight1.6 lb / 745 g
Radio System
Frequency2.415 to 2.473 GHz
Range328.1' / 100 m
Transmit Power14 dBm
General
Operating Temperature-4 to 131°F / -20 to 55°C
